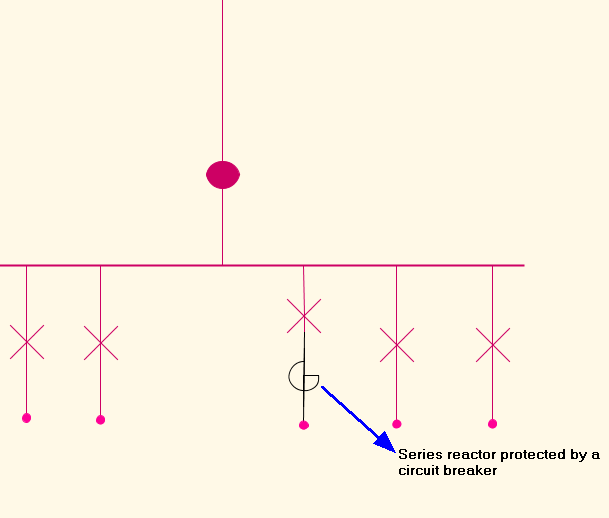

A Series reactor can be placed in a transformer bay or in an outgoing bay in combination with different types of protections.



Create a series reactor







Example 1





Example 2



Mandatory data in order for a calculation to be done:

•Reactance expressed in ohm.

•Resistance expressed in ohm (Not mandatory, as it can be = 0).



If the main attribute data is not specified, the rated voltage, active power, and inductive reactive power values from the Reactor type codelist (ELSRXTYPE_CL for series reactors and ELSHXTYPE_CL for shunt reactors) are used. Similarly, if the main attribute values are not specified, the rated voltage, rated resistance, and rated inductive reactance values from the specified codelists are applied in the calculations.
