The Edit Drawing Frames tool allows you to design your own drawing frames that can then be placed in the free plotting tool.

•The objects that are worked with in the tool are saved in the user's change set.

•The objects placed in the editor must be posted to take effect if the drawing frame is to be used in free plotting.

•To post the changes made in the drawing frame editor, it must be done in the regular application window via File > Post. Unable to post one's drawing frame from the Edit Drawing Frame application window.

Edit drawing frames

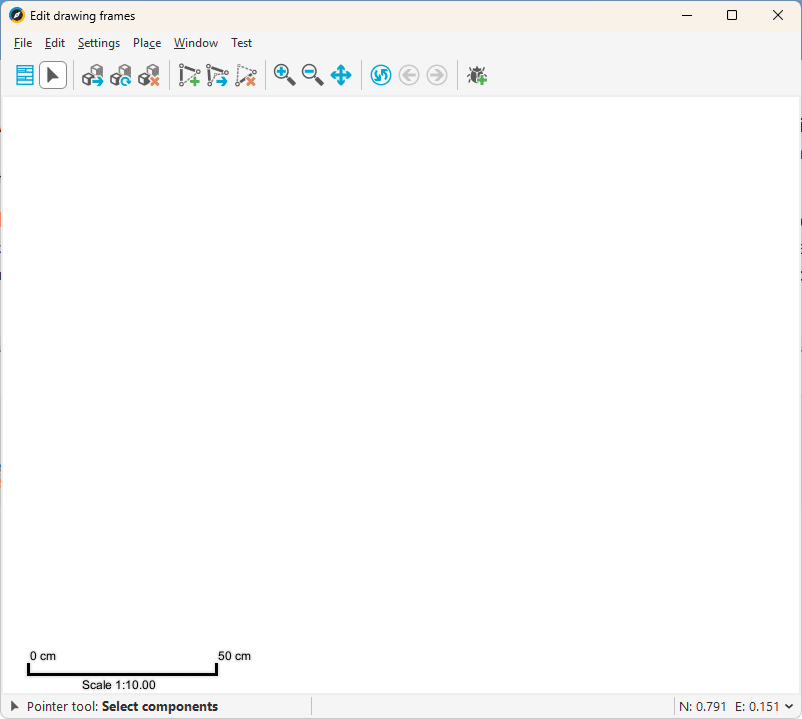

Select Administration > Edit Drawing Frames. A dialog opens. The window has many functions that work exactly the same as in the regular application window and the interface is the same.
