The Graphical cable disposition report shows a cable level view of the result of a fiber level trace, with a graphical representation similar to the Cable overview with the Graph option for the layout.

The cable disposition report tracks at the fiber/wire/carrier level and presents all cables and the connected equipment in the nodes. Graphically, the report presents cables and patch cables within the node symbol.

The Show in other view option shows the graphical cable disposition report in another view ie. if the view has been split (Window > Split View or View Templates).

Show graphical cable disposition report in other view

1.Select Reports > Graphical cable disposition report > Graphical cable disposition report in other view.

2.Select cable in the graphical view. The cable disposition report is generated and displayed in the view.

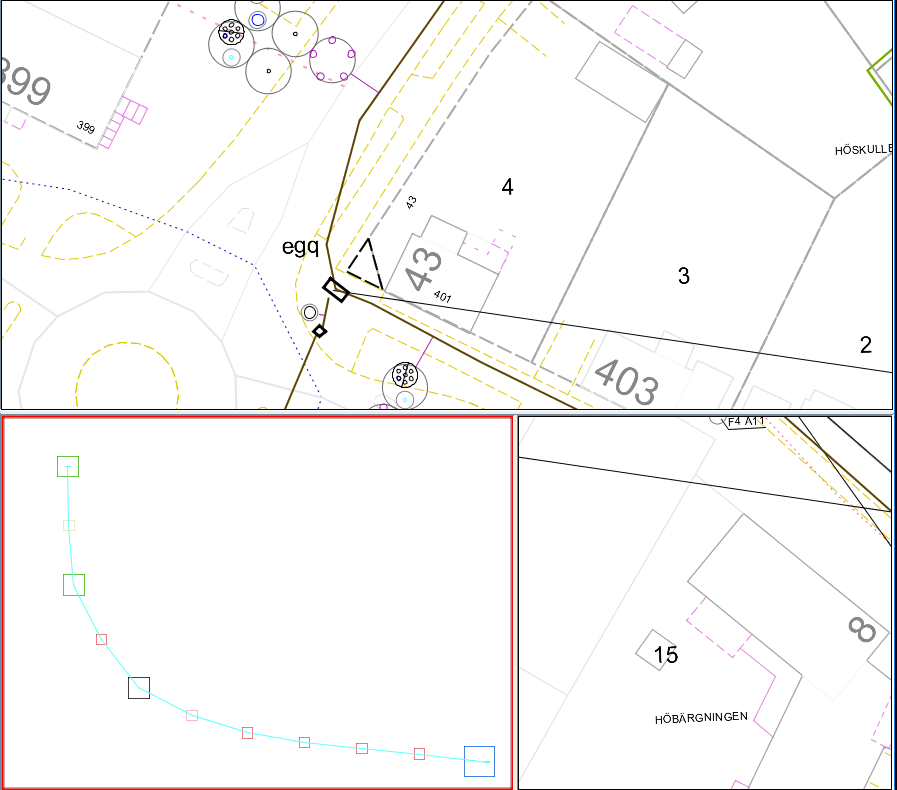

Example
