The Graphical cable disposition report shows a cable level view of the result of a fiber level trace, with a graphical representation similar to the Cable overview with the Graph option for the layout.

The cable disposition report tracks at the fiber/wire/carrier level and presents all cables and the connected equipment in the nodes. Graphically, the report presents cables and patch cables within the node symbol.

Show graphical cable disposition report in active view

1.Select Reports > Graphical cable disposition report > Graphical cable disposition report in active view.

2.Select Cable in the graphical view. The cable disposition report is generated and displayed in the active view.

Example

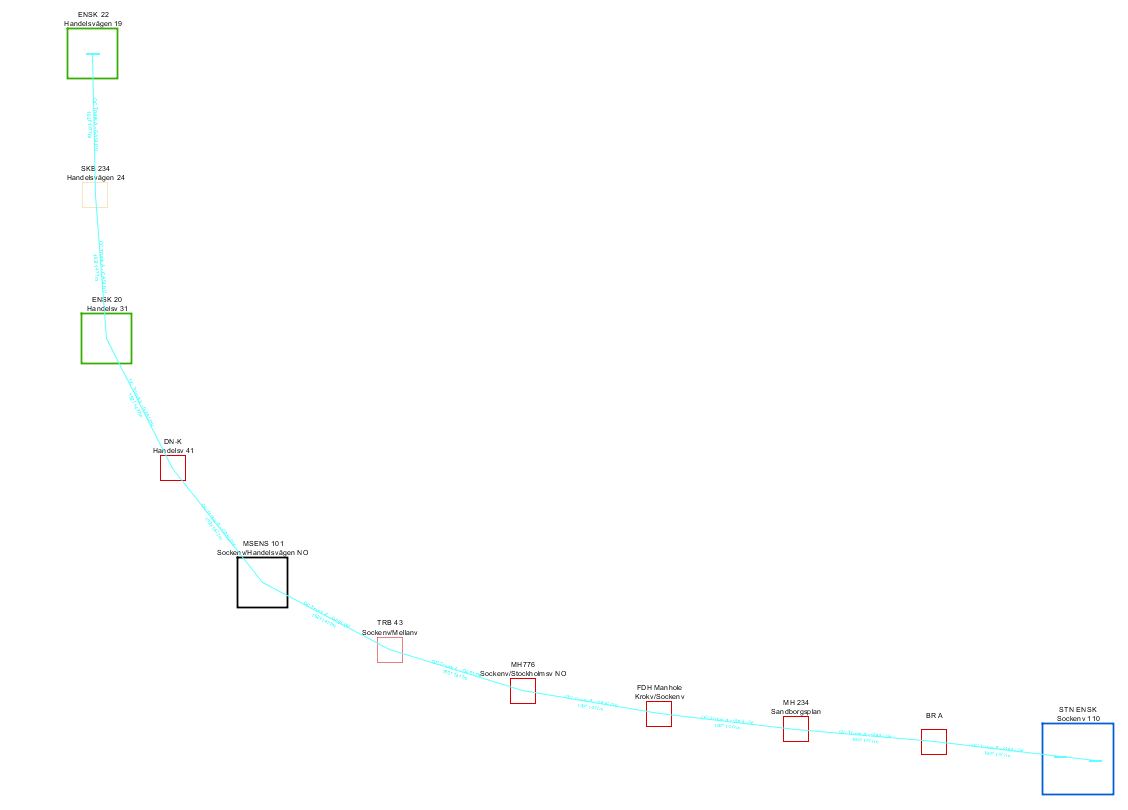

The Show in active view option displays the graphical cable disposition report in the active view. It can e.g. look like this:
