Press the button Auto schema and select an object to be involved in the trace. The dialog for auto schema is opened.

The dialog is also opened if you select Network calculation and in the tab Start parameters checks the Auto generated schema check box.

When the trace is done the dialog Traced x objects opens.



Base settings

Node separation will tell how many units in X- and Y-distance the nodes in the presentation will be positioned from each other.



Layout

Upper: Will state how far (% of the length) the upper line should be drawn before it breaks.

Lower: Will state how far (% of the length) the lower line should be drawn before it breaks.

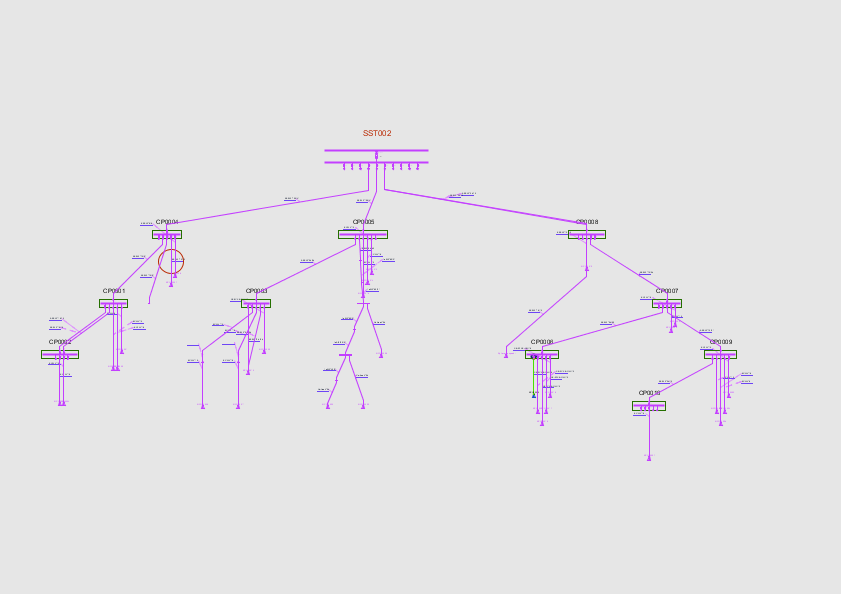

Practical example for the function Generate Schema:
