Creates line text with reference line for lines.
|
The displayed line text is the line ID and the field GTEXT1 in the code list ELCBLTYPE_CL. |
Place Line text 1 with reference line
1.Select Place > Line texts > Line text 1 with reference line.
2.Select the line that you wish to create a line text for.
3.Then place the text at desired position. A reference line is created underneath the line text.
4.Add extra vertexes for the reference line and end at the line.

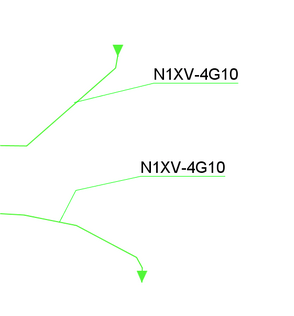

5.Double-click or right-click and select the option Create component. It can look like this:
