Creates an additional vertex (break point) to a component.
|
You can lock the movement when placing or moving a vertex: •Press N to lock the movement to north-south direction. Press N again to unlock the direction. •Press E to lock the movement to east-west direction. Press E again to unlock the direction. If both N and E are enabled, movement is locked in all directions. When you add a vertex to a line segment, you can press O to enable orthogonal mode. The vertex will then be placed so that the two new line segments form a right angle. Press O again to disable orthogonal mode. |
|
If the wrong component, segment, or vertex is selected, you can right-click to select the next possible match. |
|
If you snap the new vertex to a vertex with a Z-value, for example from a reference object, the Z-value is automatically copied to the new vertex. |
Add a vertex to a line segment
1.Select Edit > Component > Add vertex (A) or press
in the toolbar.
2.Select the component you wish to add a vertex to. The component is highlighted, illustration (A).

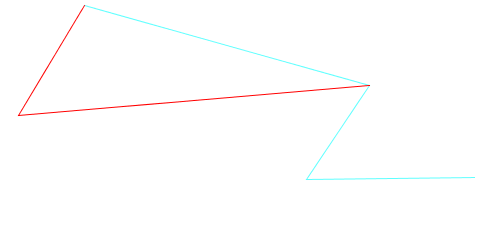

3.Select position for placing a new vertex. A preview of the result is shown in red, illustration (B).
4.Left-click to add the vertex. A new vertex for a component has been created, illustration (C).
Add a vertex after start or stop point
1.Select Edit > Component > Add vertex (A) or press in the toolbar.
2.Left-click the component's start or end point.
3.Place one or several new vertices (points). A preview of the result is shown in red.
